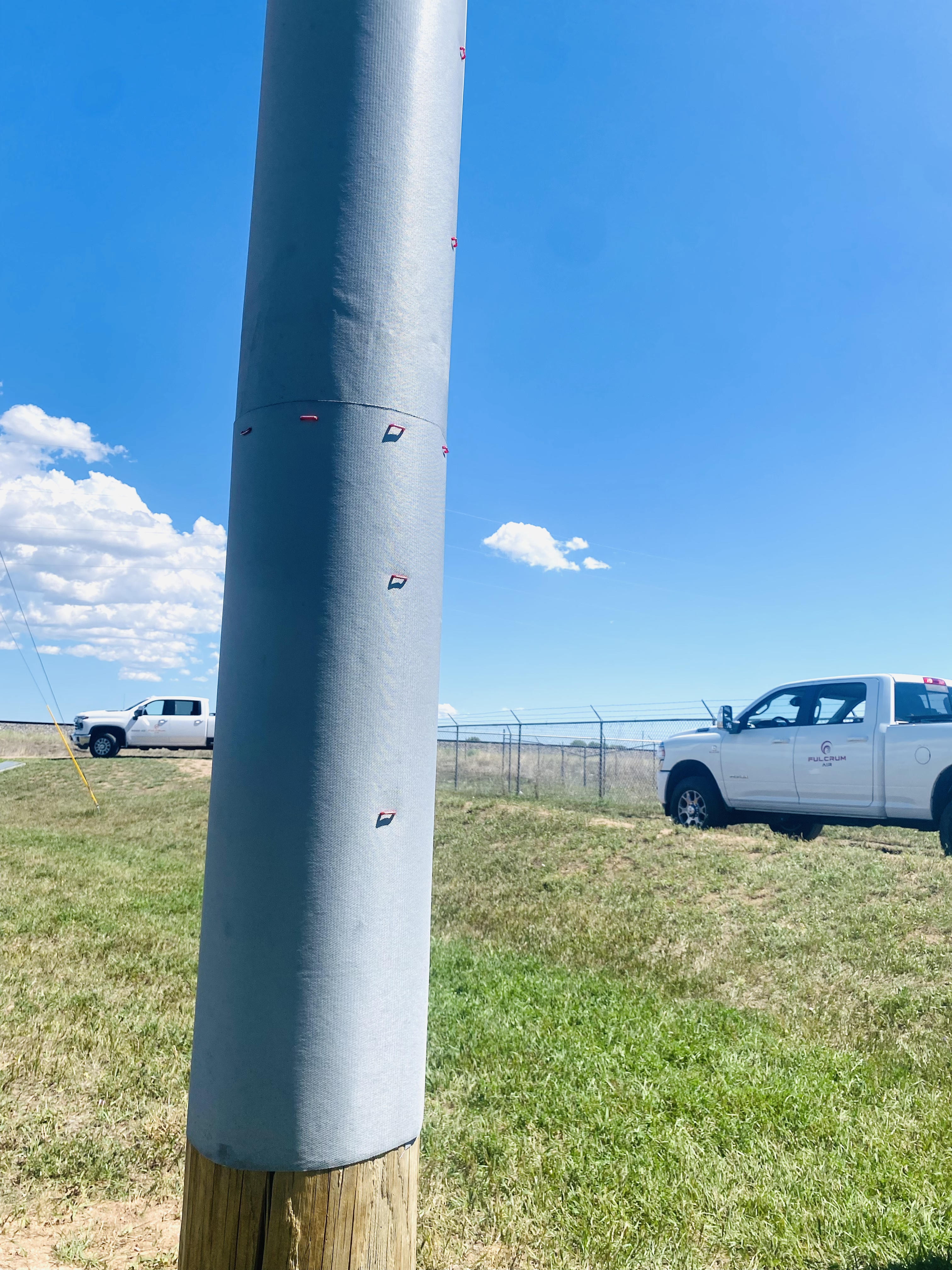

Pole Armor Fire Protection Wrap PW-FP-24
- 24″ tall x 100′ long (61cm x 30m) roll
- Intumescent wrap prevents damage to utility power poles and high-risk structures
- Provides thermal insulation for wood, composite and steel poles during a fire event
- Wide range of applications including power poles, cross arms, railroad bridges and other high risk fire zone objects
- Flexible and easy to install manually or robotically with Fulcrum Air FRM-100, robot functions on both horizontal and vertical poles
- Wrap can be doubled for extended coverage
- Durable UV/weather resistant material built to endure extreme climates and weather conditions for long term reliability
Install support
Fire Protetection Wrap Intro
Bench Test Comparison
Robotic Install Demo
Product Description
Our Fire Protection Wrap is designed to safeguard utility power poles and high-risk structures from fire damage. Engineered with cutting-edge materials, it expands upon exposure to heat, forming a thermal insulation barrier that protects wood, composite, and steel poles during fire events. This innovative wrap is capable of maintaining pole surface temperatures below 400°F (204°C), even in extreme fire conditions.
Key Features:
•High-Temperature Resistance: The outer surface can withstand direct flames and temperatures up to 2000°F (1100°C) for up to 5 minutes, offering essential protection in critical moments.
•Wide Range of Applications: Ideal for power poles, cross arms, railroad bridges, and other structures in high-risk fire zones.
•Flexible Installation: The wrap is easy to install manually or robotically, including with the Fulcrum Air FRM-100, which is designed to function on both horizontal and vertical poles.
•Durable and Weather-Resistant: Built to endure UV exposure and extreme weather conditions, this wrap ensures long-term reliability, even in harsh climates.
This versatile fire protection wrap is a must-have for utilities and infrastructure in fire-prone areas, delivering unmatched protection and easy installation for a wide range of applications.
Additional Information
| Color | Gray |
|---|---|
| Pole Wrap Package | Roll |
| Wind Resistance Rating | 120 mph |
|
Properties |
|
|
UL 94 Flammability |
V-0 |
|
UL 723 / ASTM E84 Surface Burn Characteristics |
Class A, flame spread 20, smoke 15 |
|
ASTM D-149 Dielectric Strength |
TBA |
|
ASTM D1822 Tensile Impact |
> 200 ft-lb/in |
|
ASTM Temperature Range |
< 2000 F (1100 C) |
|
ASTM D 4329 Accelerated Aging |
< 10,000 hours |
|
Width |
1200 mm |
|
Expandable rate |
> 35x by volume |
|
LOI |
> 50 |
Pole Armor™ has been tested in accordance with applicable ASTM standards. Power Line Sentry makes no guarantee of performance in extreme or unforeseen wildfire conditions beyond those defined in standard testing parameters.
