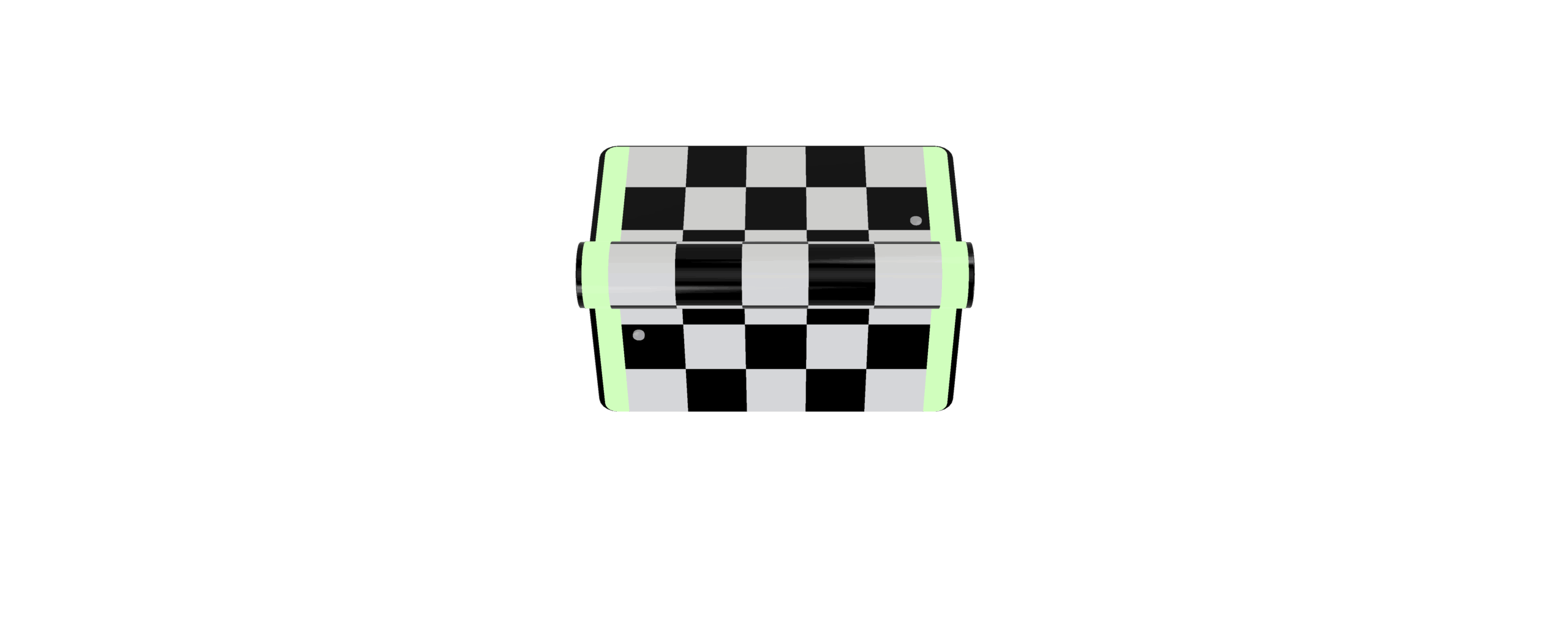

Black and White Hawk Eye™️ Bird Flight Diverter BFD-075-BW
-
Wide compatibility: installs on conductors from 0.69″ – 1.09″ (17.3mm – 27.8mm) diameter conductor
-
Avian collision deterrence backed by science: proven effective by studies emphasizing contrast and visibility in low-light conditions
-
Industry-leading visibility
-
A-frame winged shape ensures 360° visibility in all flight paths
-
Fluorescent prismatic white material is mirrored for maximum light reflection
-
24-hour glow-in-the-dark bands ensures visibility even after sunset
-
-
Durability + grid compatibility
-
UV-resistant and secure in high-wind environments
-
Rated for systems up to 345 kV on direct conductor with no corona
-
Low wind and ice load, data available upon request
-
PLS-CADD concentrated load data available
-
-
Safe, damage-free installation
-
Rubber hose cradle protects conductor – no pinching, grinding, or abrasion
-
Movement effect without mechanical parts, eliminates risk of mechanical failure
-
Snap-on install enables fast placement manually or with hotstick
-
LineFly™ compatible for automated, drone-deployed robotic installation
-
Up to 600 units installed per robot per day, even on energized lines
-
Install support
Black and white Hawk Eye intro
Hotstick install demo
LineFly robotic install showcase
Product Description

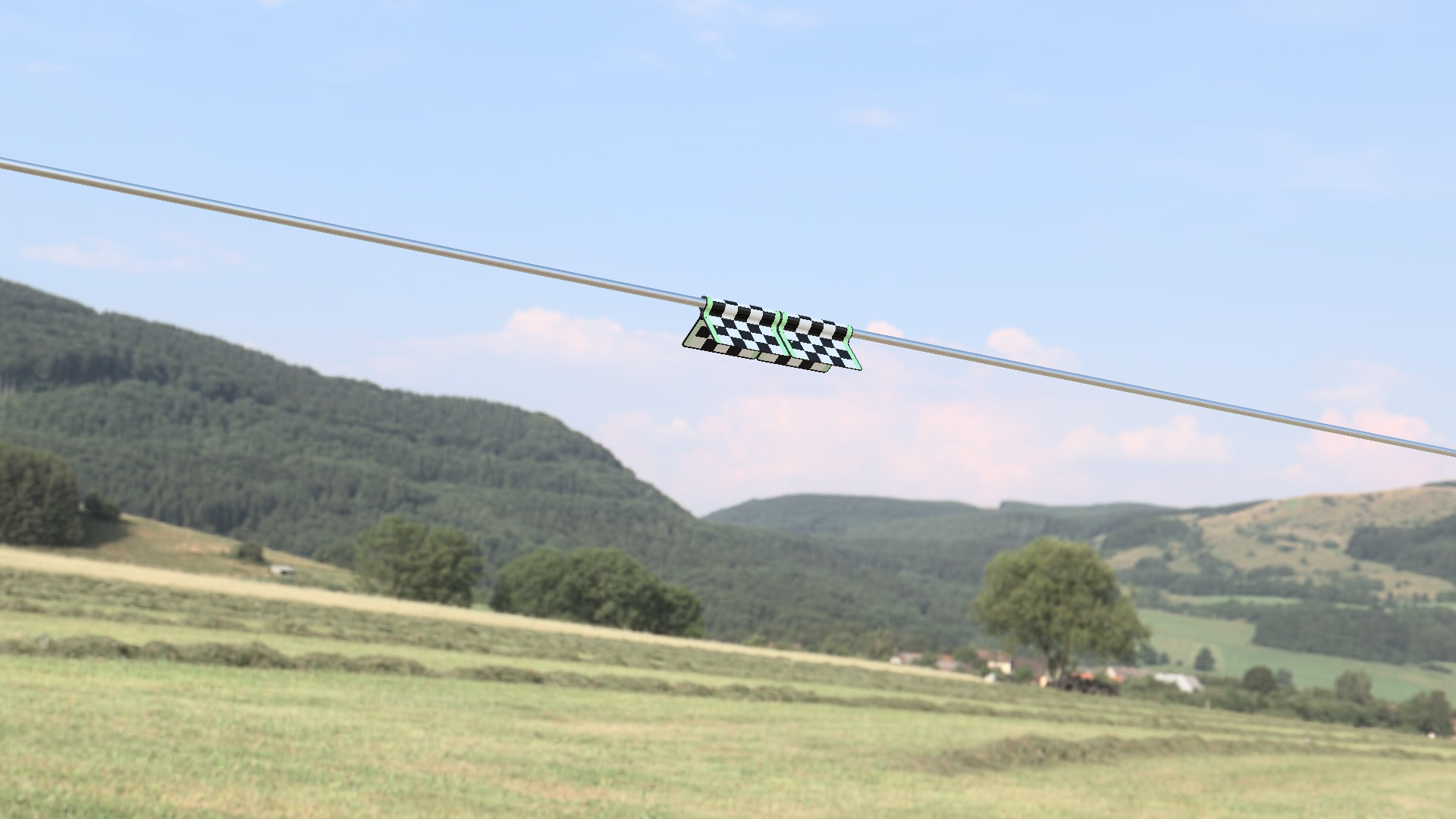

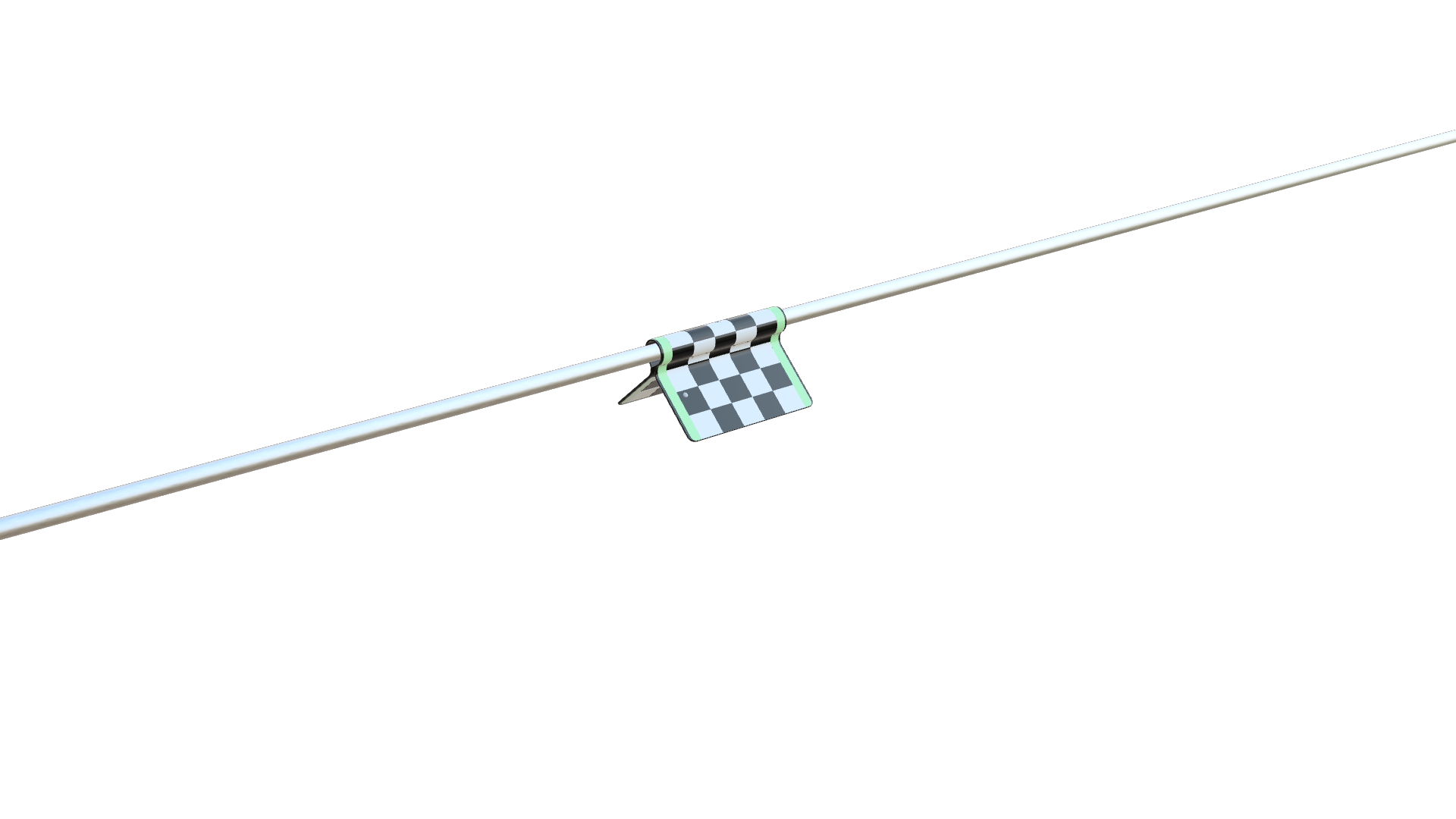

The Hawk Eye™ Bird Flight Diverter is purpose-built to reduce avian collisions with overhead power lines, especially in low-light, dusk/dawn, and poor weather conditions. Its unique tent-shaped, winged design offers unmatched 360-degree visibility, making power lines more detectable to birds across all flight paths.
Designed with both performance and installation flexibility in mind, Hawk Eye™ combines fluorescent mirrored white material and a 24-hour glow-in-the-dark band to create high-contrast visibility from all angles—even when ambient light is low or obscured. This contrast-focused approach supports avian behavior research highlighting the importance of visual distinction in dim conditions.
Crafted for long-term performance, it’s UV-resistant, wind-stable, and system-compatible up to 345 kV. Its flexible snap-on design enables rapid manual or remote installation, with zero downtime when deployed via hotstick or using the LineFly™ autonomous robot, which can be positioned by drone for safe, fast, and precise placement.
Whether for wide-span transmission lines, rugged terrain, or sensitive habitats, Hawk Eye™ delivers the industry’s highest visibility and safest installation in one lightweight, high-performance solution.
Additional Information
| Conductor Application | #4 – 300 & OPGW |
|---|---|
| Conductor Application Type | Overhead wire |
| Flame Retardant Rating | V-0 |
| Hotstick Friendly | Yes |
| Hotstick Installation Tool | BFD-AT-050-075, BFD-AT-M-050-075 |
| Material | PLS-FR-UV |
| Package Quantity | 100 |
| Voltage Rating (up to) | 345 kV |
| Wind Resistance Rating | 100 mph |
|
Tests |
Results |
|
UL 94 // Flammability of Plastic Materials |
V-0 / 5VA (UL File Number: E175765) |
|
IEEE 1656 5.6 /ASTM 4329/ASTM G-154 UV Aging |
3,000 Hours |
|
ASTM D-638 / D-1822 // Tensile Strength @ Yield |
900 psi (62.1 Mpa) |
|
ASTM D-256 / Notched Izod Impact |
12.5 FT-lb/in (670 J/m) |
|
ASTM D648 / Deflection Temperature Under Load @ 66 psi |
270 F / 132 C |
|
24 Hour Photo Luminescent – Compliance |
DIN 67510, ASTM 2072, PSPA Class A/B/C/D, APTA SS-PS-004-99 Rev 2/3, ICC 2009/201202015 IBC/IFC, UL 1994 |
|
Regulatory |
ROHS Compliant |
