Name: Flexible Insulator Cover CC-DSTFLEX-CF-100
SKU: CC-DSTFLEX-CF-100
Availability: InStock

Product Description

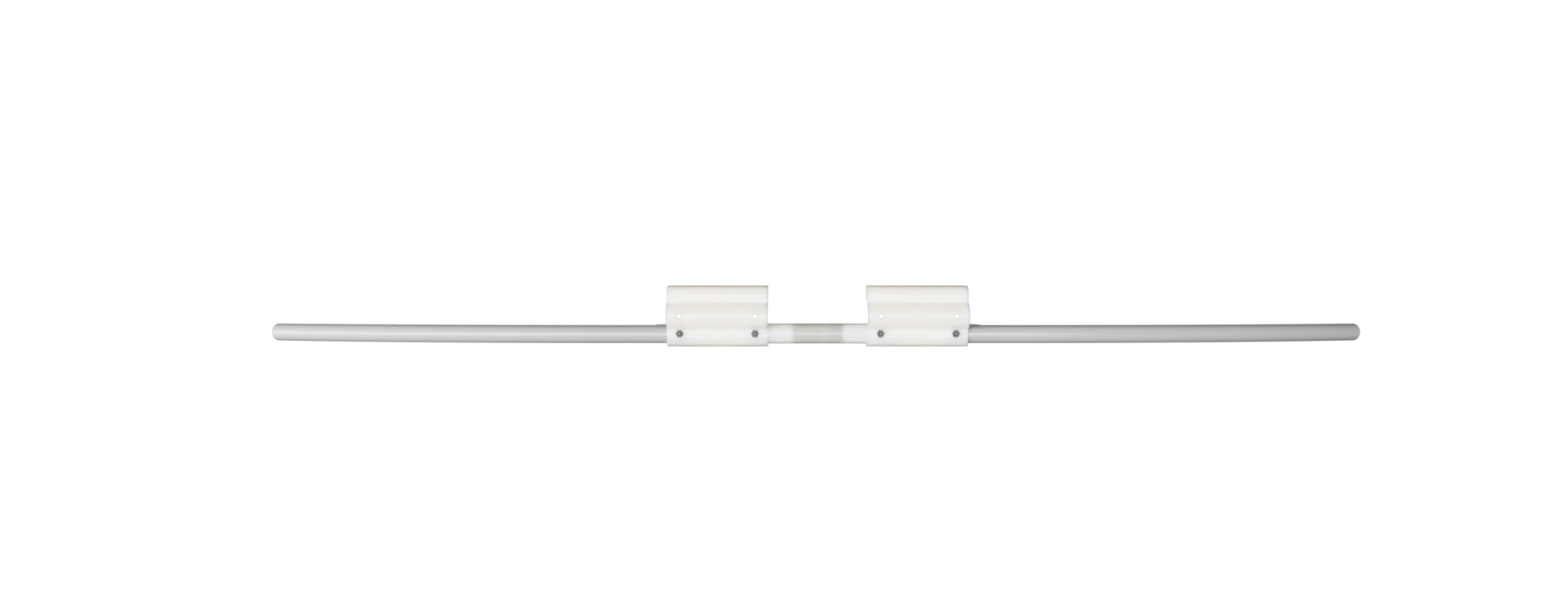

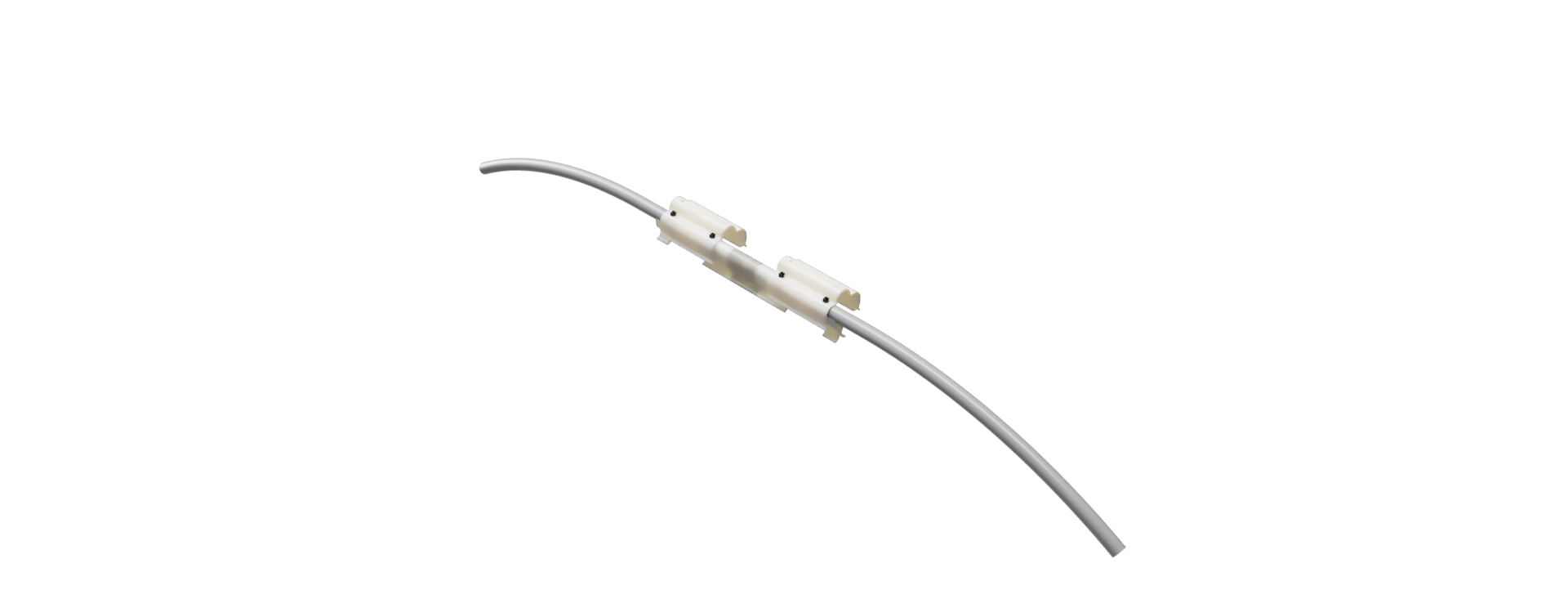

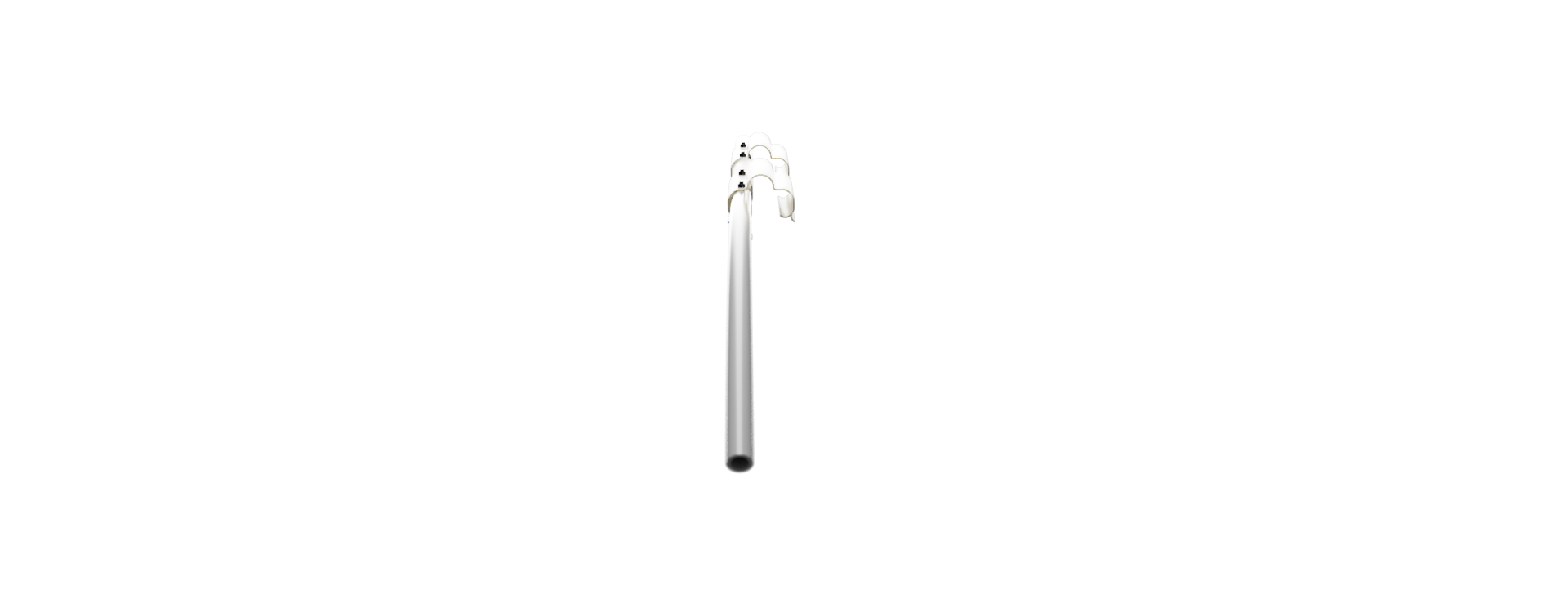

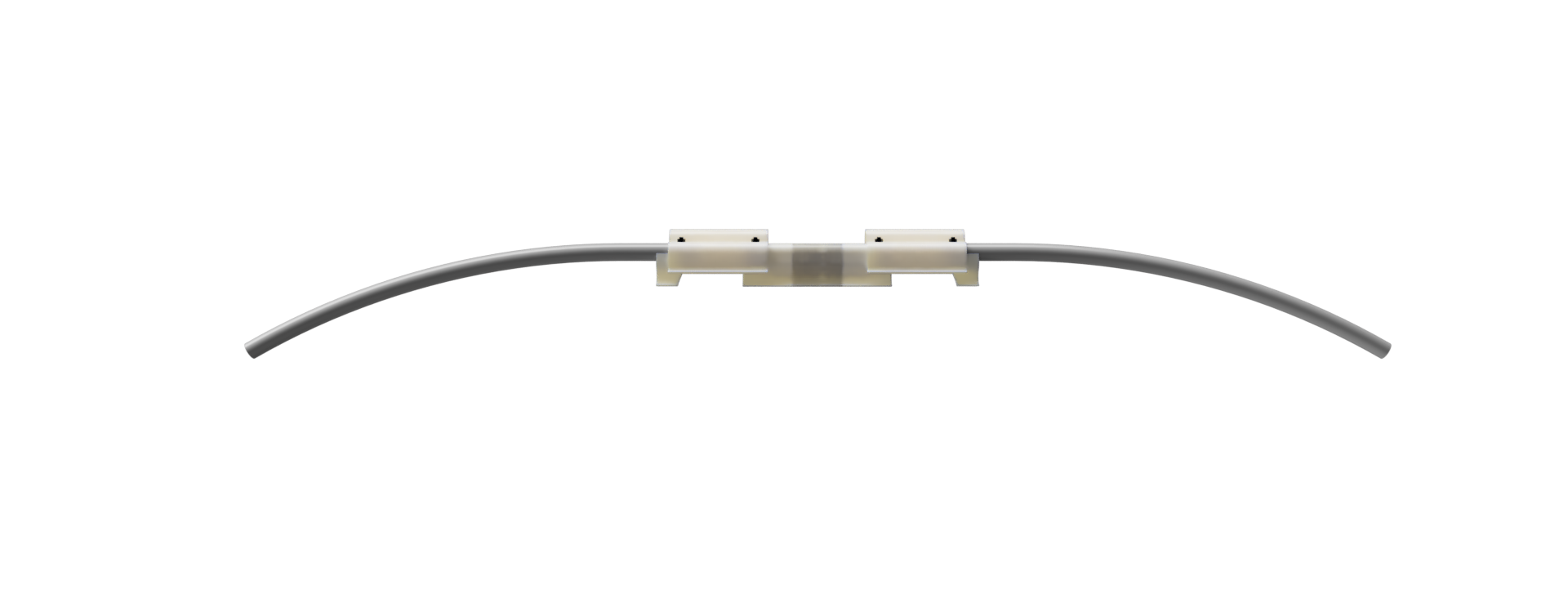

Our Flexible Insulator Covers snap-fit into position and are easily hotstickable – no locking pins! These are the only flexible insulator/conductor covers in the industry, plus they arrive in one piece so there is no assembly on site and no chance of sleeve separation on the line. Sleeves are made of our Rip Stop silicone line hose. Cap covers energized portion of the insulator, allowing sheds to naturally clean and be easily viewed during inspections.

Additional Information

Flame Retardant Rating	V-0
Hotstick Friendly	Yes
Hotstick Installation Tool	CC-FLEX-AT-K, CC-FLEX-AT-K-HT
Insulator ANSI Class	55-2, 55-3, 55-4, 55-5
Insulator Application	Double Pin / Post
Insulator Conductor Application	< 795 MCM
Insulator Coverage	91.5-95.5 in (232.41-242.57 cm)
Insulator Neck Size	C Neck 2.25-2.88 in (5.72-7.3 cm), F Neck 2.25-2.88 in (5.72-7.3 cm)
Insulator Neck Type	Tie Top / Side Tie
Material	RPVC cap and silicone sleeves
Package Quantity	5
Voltage Rating (up to)	35 kV
Wind Resistance Rating	100 mph

Tests	Results
IEEE 1656 / 5.2 Dry Withstand	>20 kV
IEEE 1656 / 5.6 Ultraviolet Aging / ASTM G-155	1,000 hrs
ASTM D149 Dielectric Strength	938 V/mil (36.9 kV/mm)
ASTM D 3638 Comparative Tracking Index	526 V
ASTM D-638 / D-1822 Original Tensile Impact	56.7 ft lb/sq in
ASTM D-638/ D-1822 Weathered Tensile Strength	51.04 ft lb/sq in
