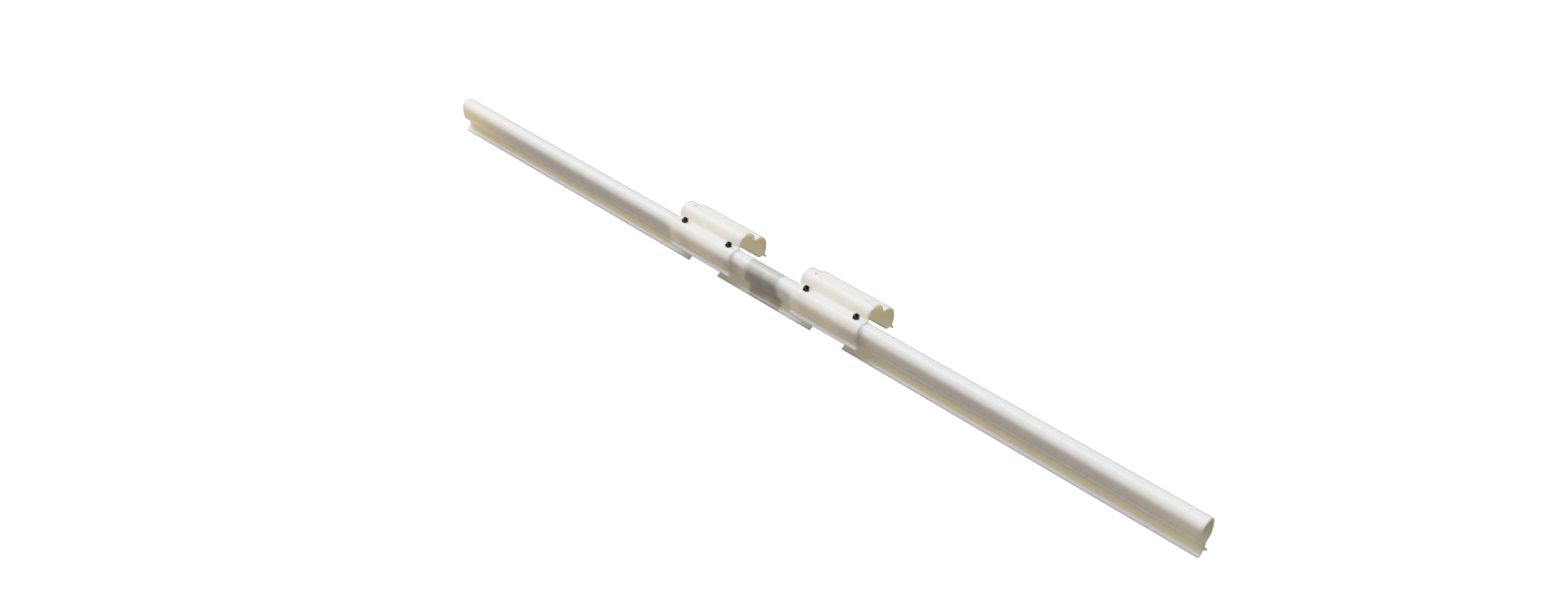

Rigid Insulator Cover CC-DST-CF

C/F neck, double side tie insulating cover with 2 rigid 36″ sleeves
91.5″-95.5″ length provides superior coverage
Top caps and middle sleeve adjusts/extends for perfect fit over insulators
No locking pins

SKU: CC-DST-CF Categories: Avian Protection Plan, Corvids + small bodied birds, Distribution, Fire Mitigation and Restoration, Grid Modernization, Insulator / Conductor Covers, Osprey, Raptors + birds with wide wingspans, Storm Hardening

Install support

Installation // Hotsticks

Play Video

Insulator Cover Portfolio Review

Play Video

Product Description

Our Rigid Insulator Covers snap-fit into position and are easily hotstickable – no locking pins! Cap covers energized portion of the insulator, allowing sheds to naturally clean and be easily viewed during inspections.

Additional Information

Flame Retardant Rating	V-0
Hotstick Friendly	Yes
Hotstick Installation Tool	CC-AT
Insulator ANSI Class	55-2, 55-3, 55-4, 55-5
Insulator Application	Double Pin / Post
Insulator Conductor Application	< 795 MCM
Insulator Coverage	91.5-95.5 in (232.41-242.57 cm)
Insulator Neck Size	C Neck 2.25-2.88 in (5.72-7.3 cm), F Neck 2.25-2.88 in (5.72-7.3 cm)
Insulator Neck Type	Tie Top / Side Tie
Material	RPVC
Package Quantity	5
Voltage Rating (up to)	35 kV
Wind Resistance Rating	100 mph
