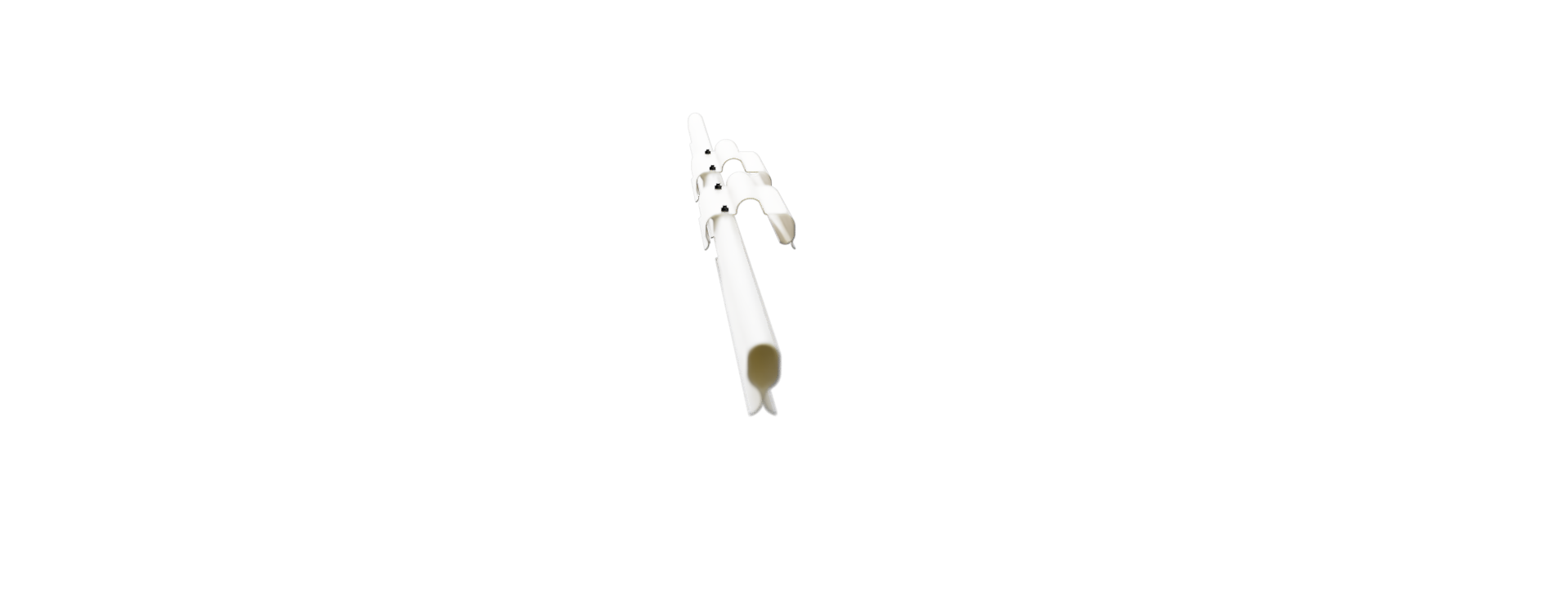

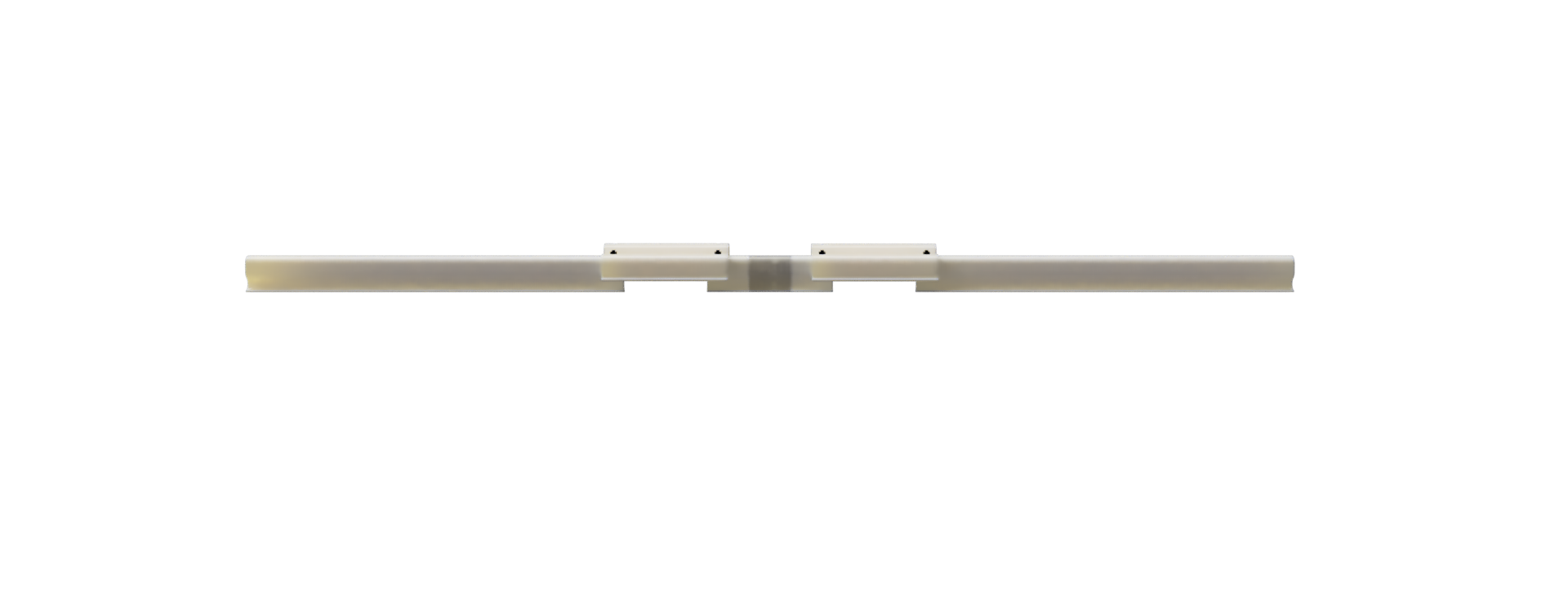

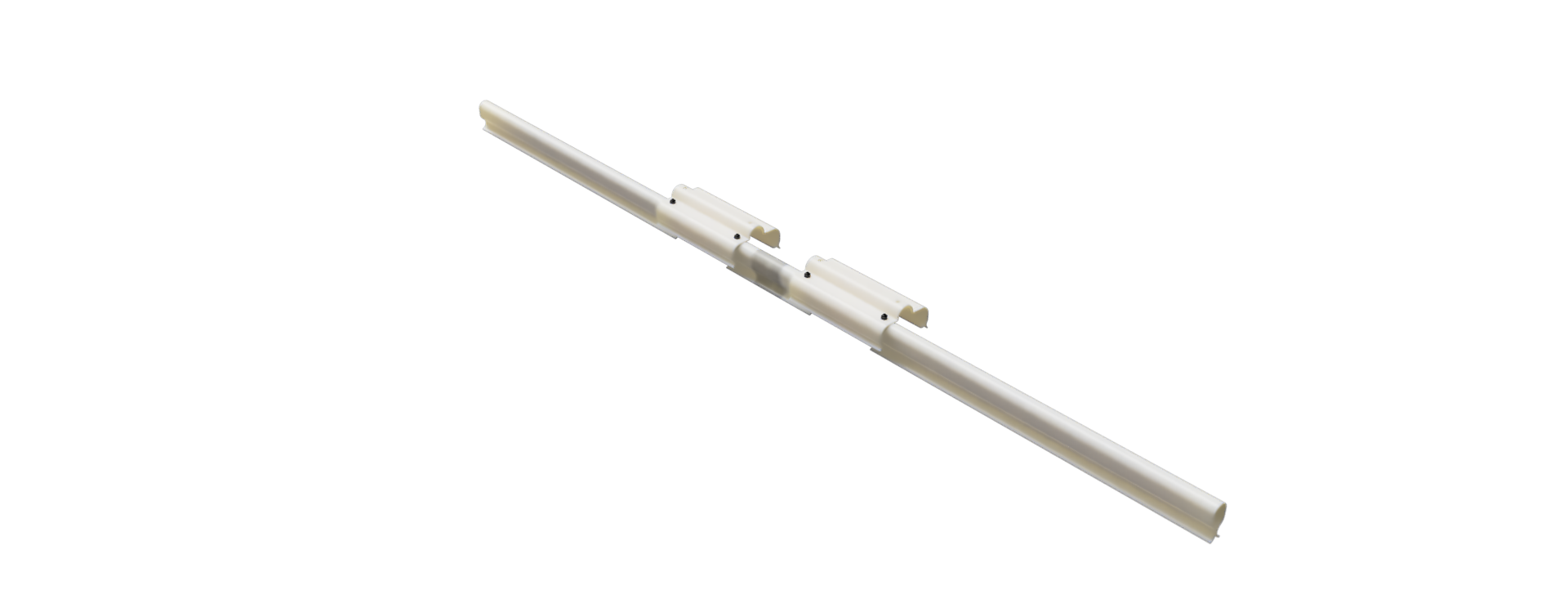

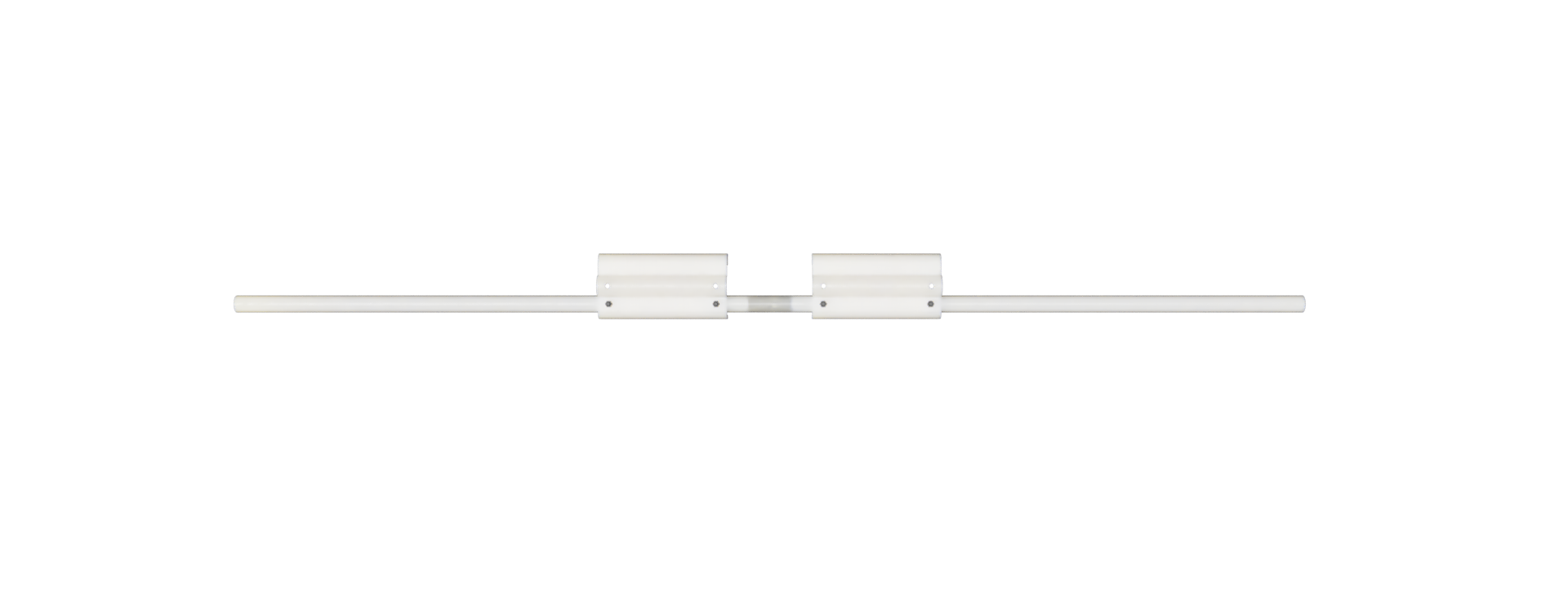

Rigid Insulator Cover CC-DST-JK
Rigid Insulator Cover CC-DST-JK - Image 2
Rigid Insulator Cover CC-DST-JK - Image 3
Rigid Insulator Cover CC-DST-JK - Image 4

Rigid Insulator Cover CC-DST-JK

Add to List
  • J/K neck, double side tie insulating cover with 2 rigid 36″ sleeves
  • 91.5″-95.5″ length provides superior coverage
  • Top caps and middle sleeve adjusts/extends for perfect fit over insulators
  • No locking pins
Email Us
Emergency Response
SKU: CC-DST-JK Categories: , , , , , , , ,

Install support

Installation // Hotsticks

Play Video

Insulator Cover Portfolio Review

Play Video

Product Description

Our Rigid Insulator Covers snap-fit into position and are easily hotstickable – no locking pins! Cap covers energized portion of the insulator, allowing sheds to naturally clean and be easily viewed during inspections.

Additional Information

Flame Retardant Rating

V-0
Hotstick Friendly

Yes
Hotstick Installation Tool

CC-AT
Insulator ANSI Class

55-6, 55-7, 56-1, 56-2, 56-3
Insulator Application

Double Pin / Post
Insulator Conductor Application

< 795 MCM
Insulator Coverage

99.5-103.5 in (252.73-262.89 cm)
Insulator Neck Size

J Neck 3.5-4 in (8.89-10.16 cm), K Neck 3.5-4 in (8.89-10.16 cm)
Insulator Neck Type

Tie Top / Side Tie
Material

RPVC
Package Quantity

5
Voltage Rating (up to)

35 kV
Wind Resistance Rating

100 mph
