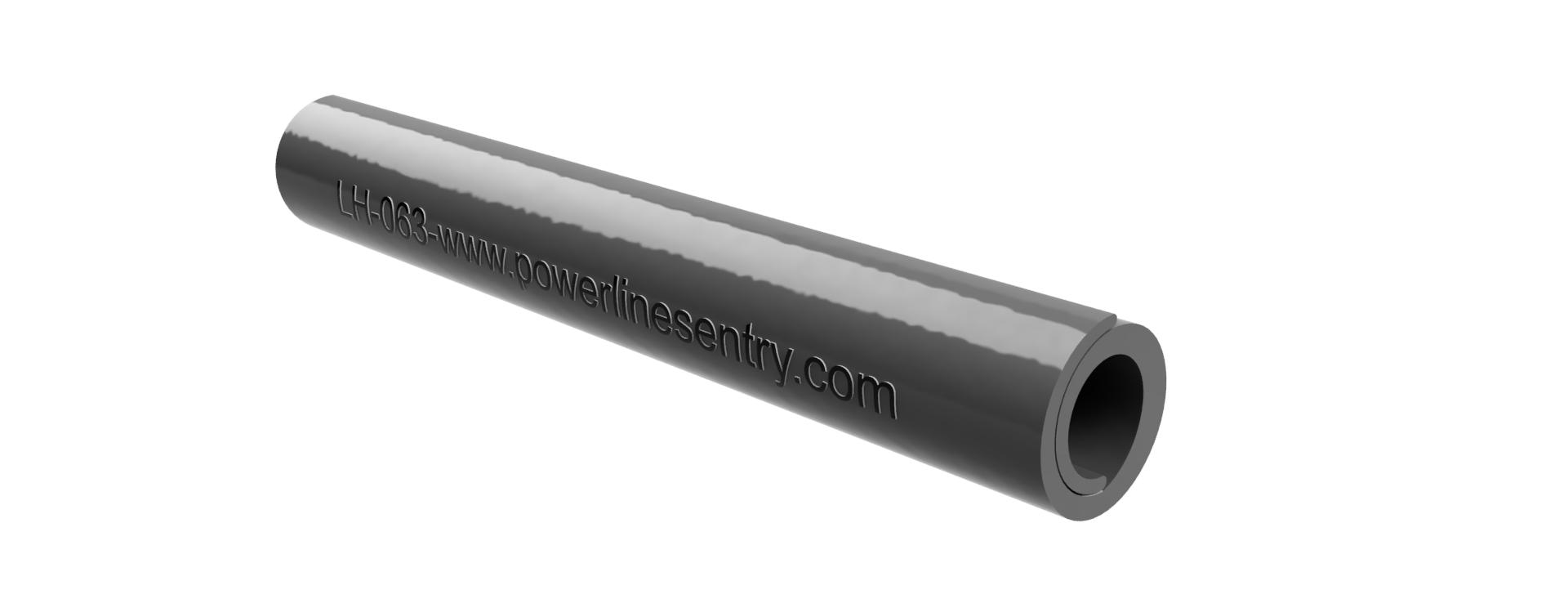

Rip Stop™️ Insulating Line Hose LH-063-50
- Tear resistant line hose for 1/0 – 336 ACSR
- 50′ roll per box
- Best in class silicone – will not deteriorate, become brittle/hard
Installation // Hotstick
Installation // Manual with tool
Accelerated UV Aging Chamber Silicone Test Results
Product Description

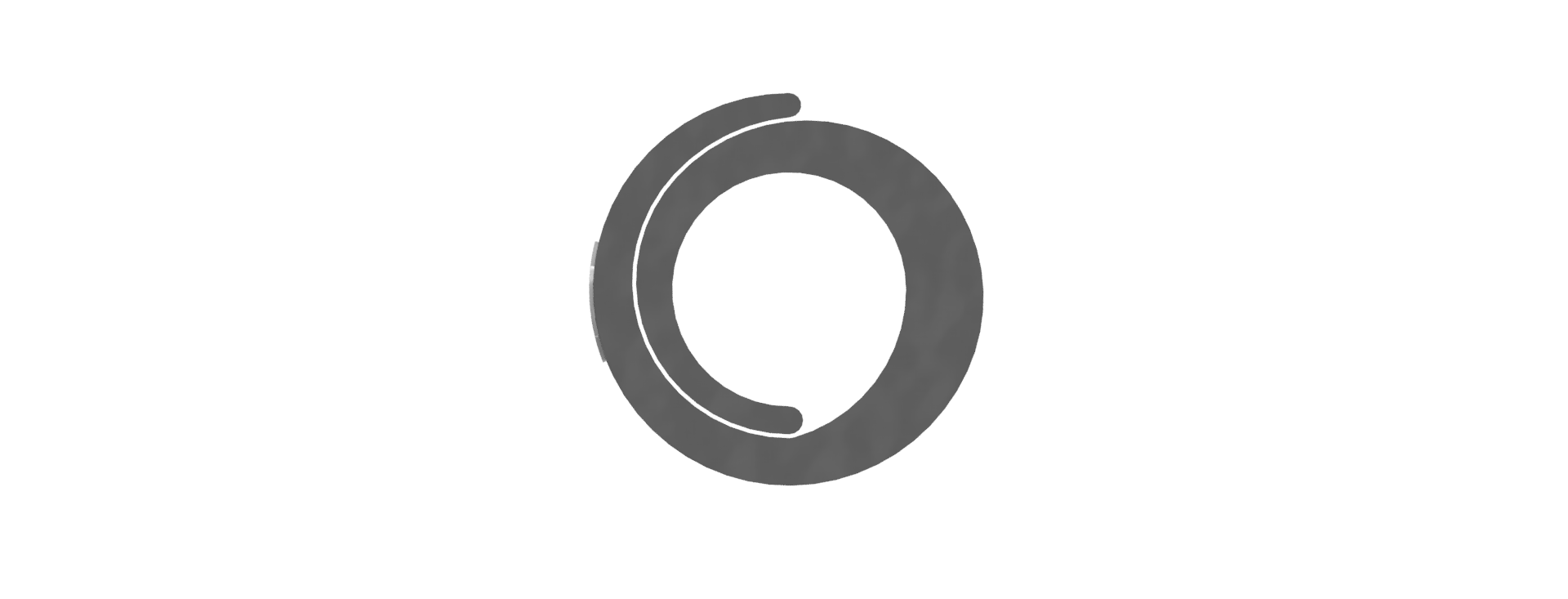

This best-in-class insulating silicone line hose is truly tear-resistant – the only one of its kind in the industry. It pliable in both high and low temperatures and its 50% overlapping slit provides superior retention and a super easy install. Plus, enjoy zero system downtime when installed with hotstick installation tool.
Additional Information
Conductor Application | 1/0 – 336 ACSR |
---|---|
Flame Retardant Rating | V-0 |
Hotstick Friendly | Yes |

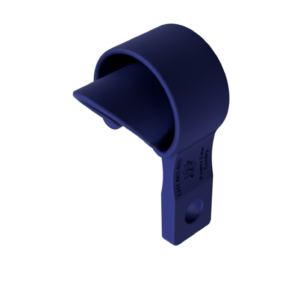

Hotstick Installation Tool | LHT-063-075 |
Material | Silicone |
Voltage Rating (up to) | 35 kV |
Wind Resistance Rating | 100 mph |
Tests |
Results |
IEEE 1656 / 5.2 Wet Withstand |
>20kV |
Tear Strength |
46.5 kN/m |
ASTM D257-14 Volume Resistivity |
5.20X10^16 Ohms/cm |
ASTM D257-14 Surface Resistance |
1.61×10^12 Ohms |
ASTM D257-14 Insulation Resistance |
2.94×10^12 Ohms |
ISO 37:2017 Elongation at break |
414% |
ISO 7619-1:2010 Shore Hardness |
62 Shore A |
ASTM D573-04 Heat Resistance |
200C / 72 hrs 414% Elongation, 65 Shore A |
IEEE 1656 / 5.6 Ultraviolet Aging / ASTM G-155 |
1,000 hrs |
UL 94 Flammability of Plastic Materials |
V-0 |
ASTM D149 Dielectric strength |
287 V/mil (11.3 kV/mm) |
ASTM D 3638 Comparative Tracking Index |
526 V |
ASTM D150-18 Dielectric constant & dissipation factor |
2.96 // 0.004 |
ISO 812 Brittleness Temperature |
>-94F (-70C) |
