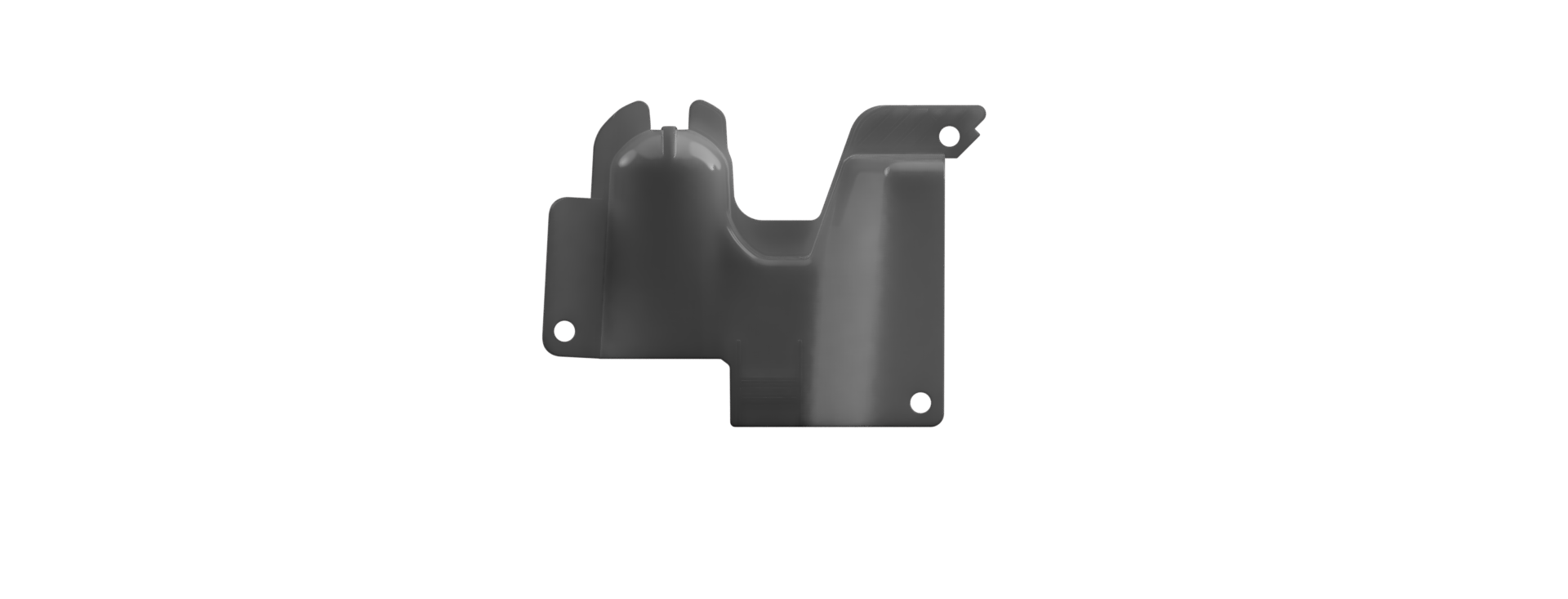

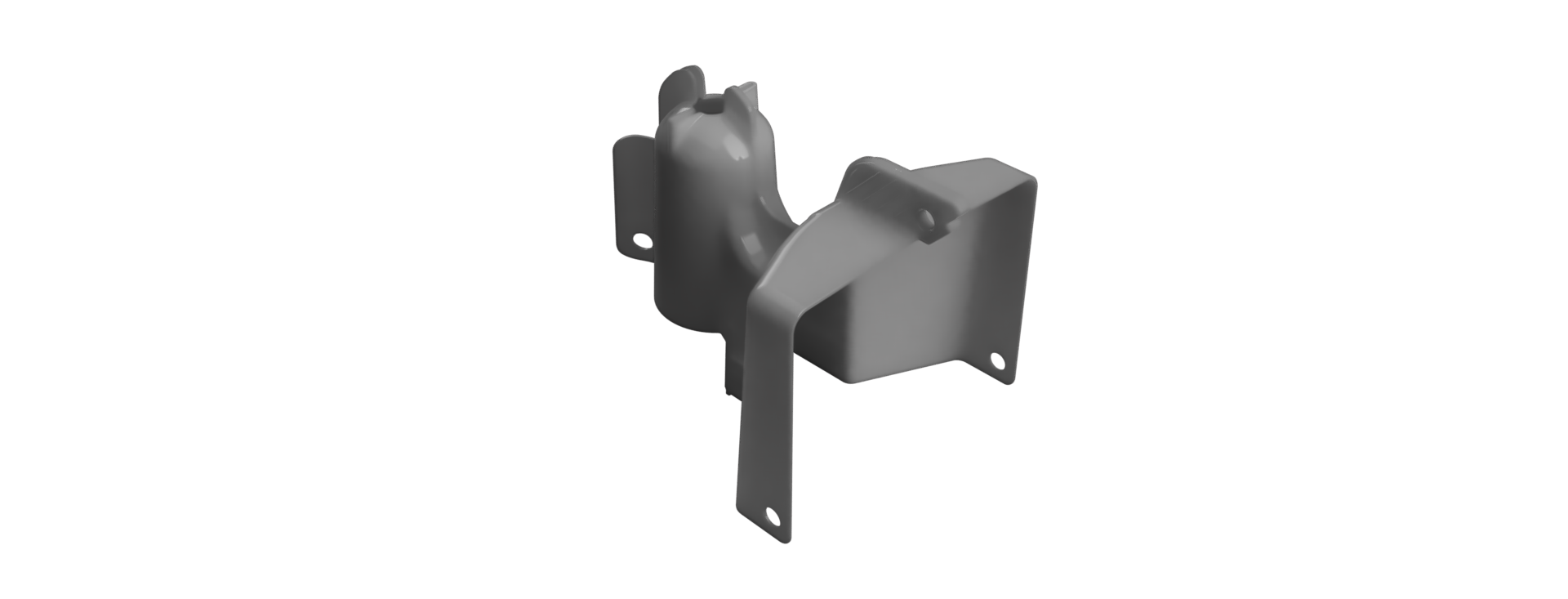

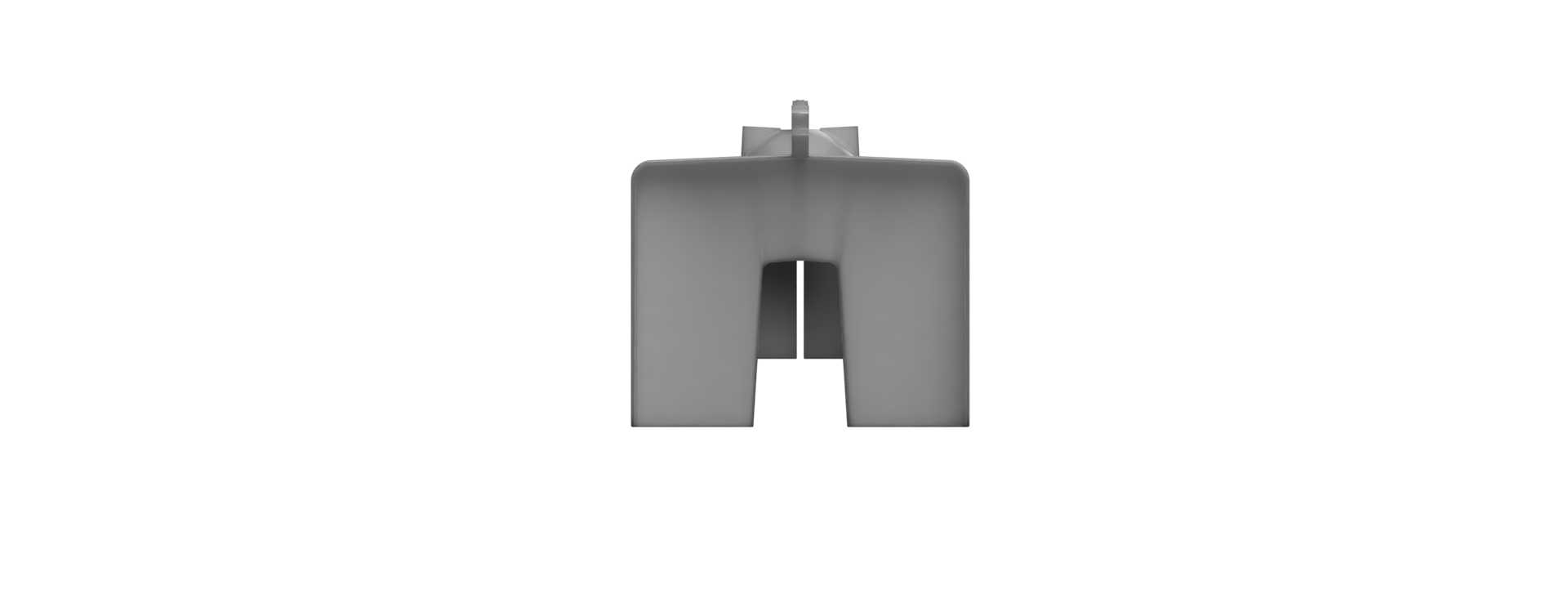

Universal Cutout Cover CT-D02
Universal Cutout Cover CT-D02 - Image 2
Universal Cutout Cover CT-D02 - Image 3
Universal Cutout Cover CT-D02 - Image 4
Universal Cutout Cover CT-D02 - Image 5
Universal Cutout Cover CT-D02 - Image 6
Universal Cutout Cover CT-D02 - Image 7
Universal Cutout Cover CT-D02 - Image 8

Universal Cutout Cover CT-D02

Add to List
  • Fits most <27kV porcelain and polymer non-loadbreak cutouts, including: Chance Type C, ABB, AlumaForm, Cooper/Eaton Type L

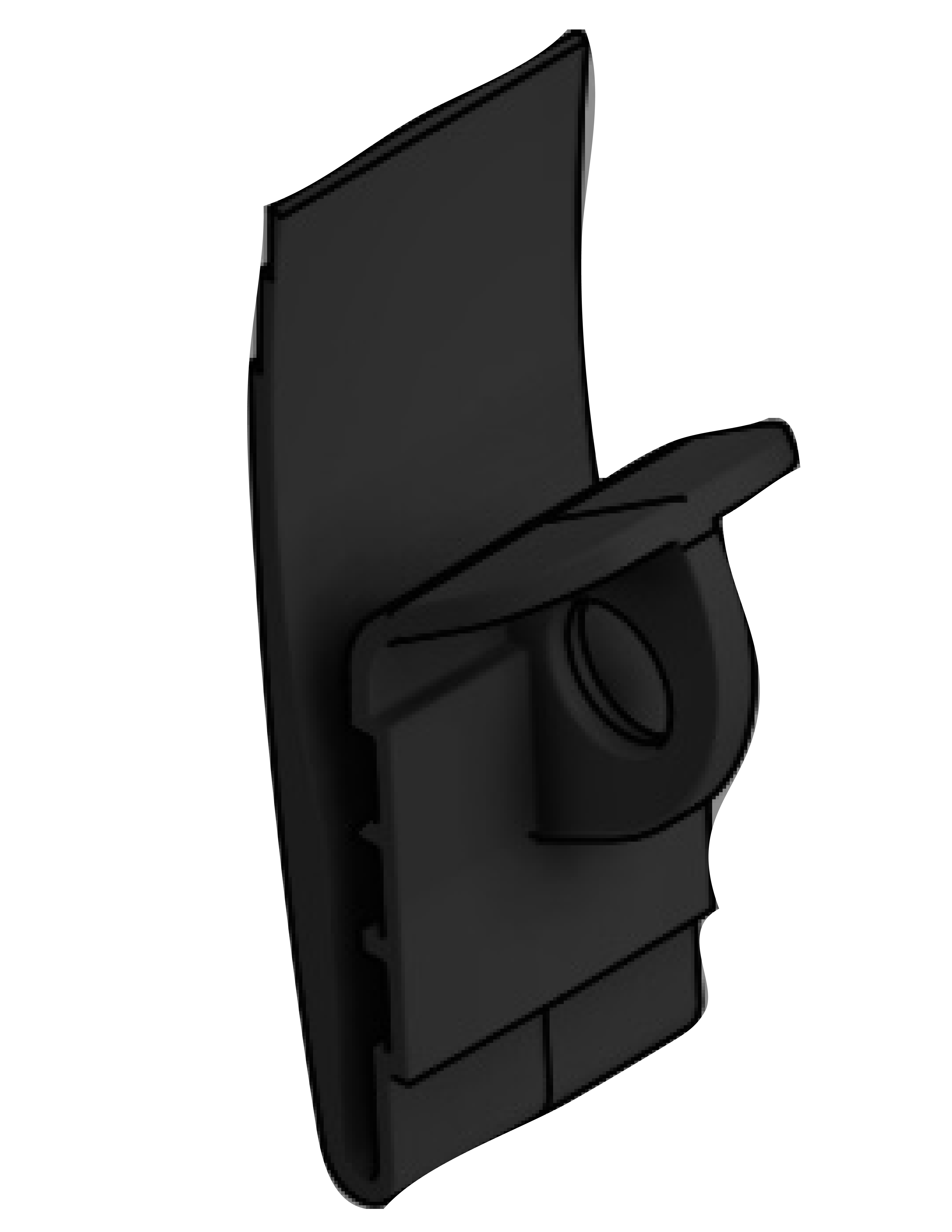

  • Snap-lock neck clip adjusts for a tight, secure fit – no locking pins required
  • Covers arcing horns and upper cutout section to reduce wildlife contact risk
  • Allows natural self-cleaning of insulator skirts
  • Fastest and safest hotstick installation in the industry – no need for outages
  • RUS approved by the USDA Technical Standards Committee for Rural Utilities Services
Email Us
Emergency Response
SKU: CT-D02 Categories: , , , , , , , , , , , , , ,

Install support

Assembly + Installation Tutorial

Play Video

Adjustable Fitment Demo

Play Video

Product Description

Protect your electrical distribution system with our Universal Cutout Cover, engineered for 15–27kV porcelain and polymer non-loadbreak cutouts. Featuring an adjustable snap-lock neck clip, this cover ensures a secure fit without the need for locking pins, even on commonly used cutouts like Chance Type C, ABB, AlumaForm, and Eaton/Cooper Type L.
Its unique form factor fully shields arcing horns and the upper cutout section to help prevent wildlife electrocution and flashover incidents, while allowing insulator skirts to self-clean naturally.
Designed for safe, efficient hotstick installation, the Universal Cutout Cover can be applied without system shutdown, minimizing downtime.
RUS approved – Accepted by the USDA Technical Standards Committee for Rural Utilities Services, this wildlife protection product meets the standards for rural electrical infrastructure.

Additional Information

Cutout Application

< 27 kV Polymer Cutouts, < 27 kV Porcelain Cutouts
Flame Retardant Rating

V-0
Hotstick Friendly

Yes
Hotstick Installation Tool

No additional tool needed
Material

PLS-PP-FR-UV
Package Quantity

20
Voltage Rating (up to)

35 kV
Wind Resistance Rating

150 mph

Tests

Results

IEEE 1656 / 5.2 Wet Withstand

>18 kV

IEEE 1656 / 5.3 Wet power frequency flashover

>95%

IEEE 1656 / 5.4 Lightning Impulse withstand

125kV

IEEE 1656 / 5.5 Cold temperature test

Passed  / -25C

IEEE 1656 / 5.6 Ultraviolet Aging

5,000 hours

Wind Retention

> 150 mph

UL 94 Flammability of Plastic Materials

V-0

Properties

Results

ASTM D149 Dielectric strength

467 V/mil (18.4 kV/mm)

ASTM D2303 Inclined plane tracking and erosion: Initial Tracking (variable voltage)

4.0 kV

ASTM D638 Tensile Strength @ Yield

2,400 psi (17 MPa)

ASTM D790 Flexural Modulus

140,000 psi (966 Mpa)

Regulatory

ROHS Compliant
