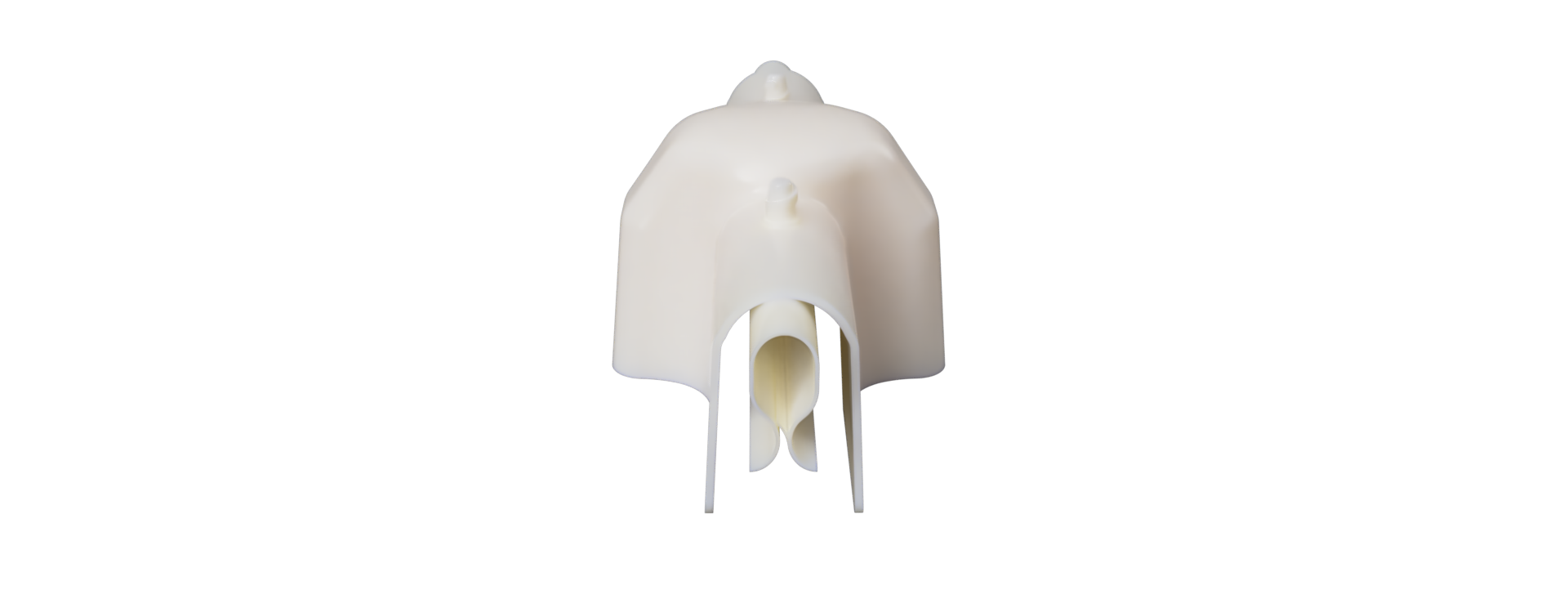

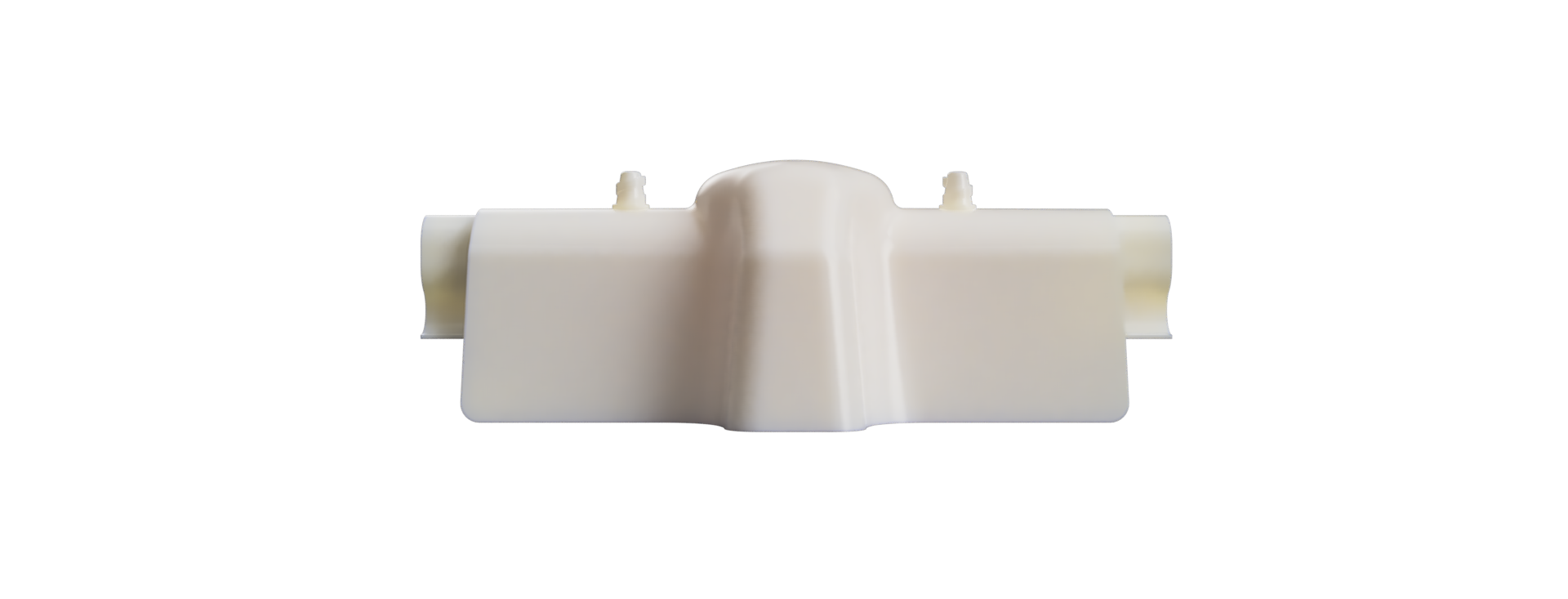

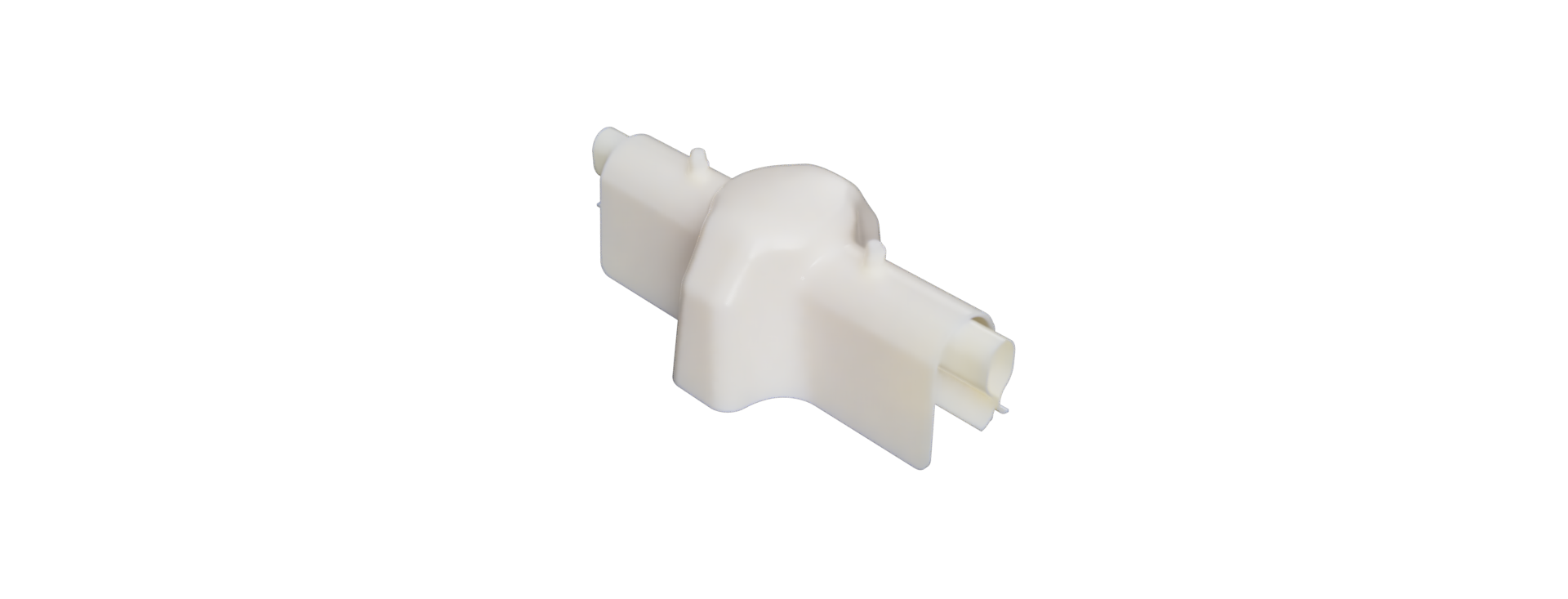

Name: Rigid Insulator Cover CC-TR
SKU: CC-TR
Availability: InStock

Product Description

Our Rigid Insulator Covers snap-fit into position and are easily hotstickable – no locking pins! Cap covers energized portion of the insulator, allowing sheds to naturally clean and be easily viewed during inspections. This cover has shorter sleeves for use in unique circumstances and is meant to be used in combination with additional insulation.

Additional Information

Flame Retardant Rating	V-0
Hotstick Friendly	No
Insulator ANSI Class	57-11, 57-12, 57-13
Insulator Application	Clamp Top / Trunnion
Insulator Conductor Application	< 795 MCM
Insulator Coverage	16 in (40.64 cm)
Insulator Neck Size	Trunnion
Insulator Neck Type	Vertical Clamp Top
Material	RPVC
Package Quantity	10
Voltage Rating (up to)	69 kV
Wind Resistance Rating	100 mph

Tests	Results
IEEE 1656 / 5.2 Dry Withstand	>20 kV
IEEE 1656 / 5.6 Ultraviolet Aging / ASTM G-155	1,000 hrs
ASTM D149 Dielectric Strength	938 V/mil (36.9 kV/mm)
ASTM D 3638 Comparative Tracking Index	526 V
ASTM D-638 / D-1822 Original Tensile Impact	56.7 ft lb/sq in
ASTM D -638/ D-1822 Weathered Tensile Strength	51.04 ft lb/sq in
